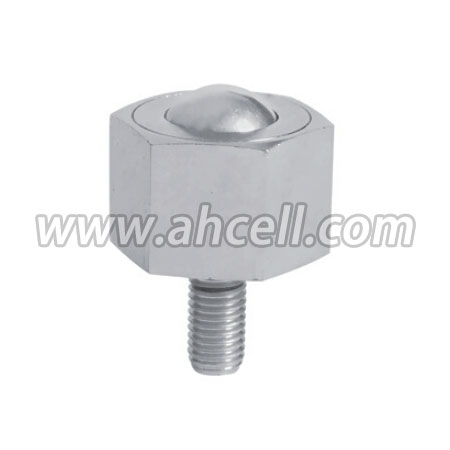

MISUMI Typ Kugelrollen/Sechskantkopf/Ausführung mit Bolzen
- Marke Ahcell
- Modell-Nr BCHL BCHLJ BCHLJJ BCHLJP
BCHL BCHLJ BCHLJJ BCHLJP MISUMI Typ Kugelrollen/Sechskantkopf/Ausführung mit Bolzen
AHCELL Typ:
|
Modell-Nr |
d |
L |
H |
h1 |
h2 |
M |
Maximale Lade (kg) |
Nettogewicht |
|
|
Empfohlene |
Bruch |
(kg) |
|||||||
|
NJ-12 |
11.90(15/32””) |
18 |
13.0±0.1 |
3 |
12 |
M12 |
5 |
6 |
0.025 |
|
NJ-16 |
15.88(5/8”) |
24 |
18.0±0.1 |
4 |
18 |
M12 |
10 |
15 |
0.150 |
|
NJ-25 |
25.40(1”) |
36 |
33.0±0.1 |
6 |
27 |
M12 |
60 |
80 |
0.210 |
|
NJ-30 |
30.16(1-3/16”) |
45 |
35.0±0.1 |
7 |
30 |
M14 |
150 |
200 |
0.230 |
|
NJ-38 |
38.10(1-1/2”) |
55 |
51.0±0.1 |
9 |
40 |
M16 |
250 |
300 |
0.460 |
|
NJ-45 |
45.24(1-25/32”) |
75 |
51.0±0.1 |
9 |
40 |
M16 |
350 |
400 |
1.800 |
MISUMI Typ:
| Ausführung | Werkstoff | |||
| Grundkörper | Distanzring | Hauptkugel | Nebenkugel | |
| BCHL | EN 1.4301 Äquivalent | EN 1.4301 Äquivalent | EN 1.4125 Äquivalent (HRC55~) | EN 1.4125 Äquivalent (HRC55~) |
| BCHLJ | Polyacetal-Kugel | |||
| BCHLJJ | Polyacetal | - | ||
| BCHLJP | PEEK | - | PEEK | |
Spezifikationen
| Teilenummer | L | L1 | H | d | S | Zulässige Last N (kgf) | Stückpreis | ||
| Ausführung | M | BCHL | BCHLJ | ||||||
|
BCHL (Edelstahlkugel) BCHLJ (Polyacetal-Kugel) |
5 | 6 | 1.1 | 5 | 4 | 8 | 12(1.2) | 6(0.6) | |
| 6 | 8 | 1.2 | 6 | 4.76 | 10 | 14(1.4) | 7(0.7) | ||
| 8 | 10 | 1.5 | 7 | 5.56 | 13 | 41(4.2) | 27(2.8) | ||
| 10 | 12 | 2.5 | 10 | 8.73 | 17 | 55(5.6) | 34(3.5) | ||
| 12 | 15 | 3.5 | 11 | 10.32 | 19 | 62(6.3) | 55(5.6) | ||
| 16 | 20 | 5.3 | 15 | 15.87 | 24 | 343(35) | 69(7) | ||
| 20 | 25 | 6.3 | 18 | 19.05 | 30 | 412(42) | 82(8.4) | ||
| Teilenummer | L | L1 | H | d | S | E | Zulässige Last N (kgf) | Stückpreis | |||||
| Ausführung | M | BCHLJJ | BCHLJP | BCHLJJ | BCHLJP | BCHLJJ | BCHLJP | BCHLJJ | BCHLJP | ||||
|
BCHLJJ Polyacetal BCHLJP (PEEK) |
5 | 6 | 1.5 | - | 5 | 4.76 | - | 8 | 1.5 | 2(0.2) | - | - | |
| 6 | 8 | 1.7 | 2 | 6 | 5.56 | 6.35 | 10 | 2.5 | 4(0.4) | 5(0.5) | |||
| 8 | 10 | 2.8 | 2.5 | 8 | 8.73 | 7.94 | 13 | 3 | 7(0.7) | 6(0.6) | |||
| 10 | 12 | 3.5 | 3 | 10 | 10.32 | 9.53 | 17 | 3.5 | 11(1.1) | 8(0.8) | |||
